Backbone PE

The network infrastructure consists of backbone PE devices, which facilitate interconnection of backbone networks. Users can be efficiently assigned and managed thanks to the Backbone PE feature. This document provides detailed instructions for creating, modifying, and removing backbones.

Creating Backbone PE​

  • To create a Backbone PE, ensure a backbone is already configured. Refer to the Backbone Configuration Guide for instructions.

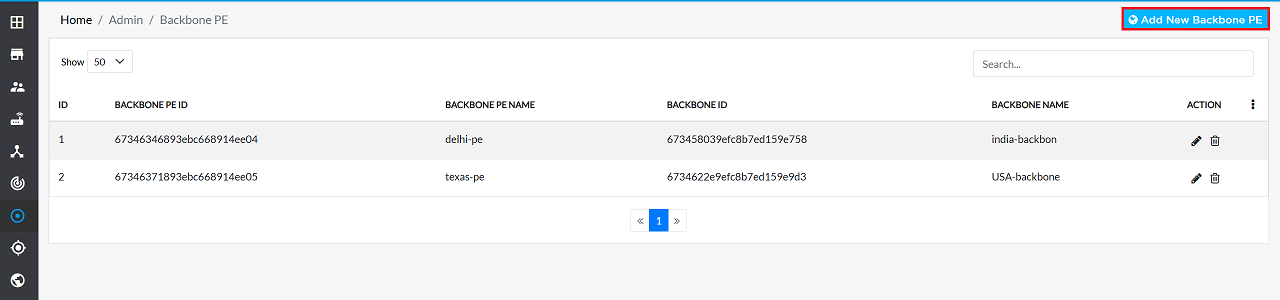

  • Go to the Login > Backbone PE > Add New Backbone PE.

    image-1

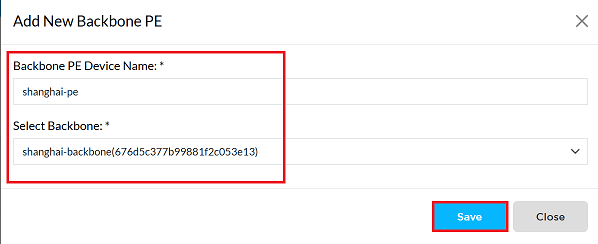

  • Provide the required information in the fields below.

    • Backbone PE Device Name: Enter the name of the Backbone PE device. (i.e:- shanghai-pe)
    • Select Backbone: Choose the associated Backbone from the dropdown list. (i.e, shanghai-backbone)
    • Click the Save button to complete the process.

    image-2

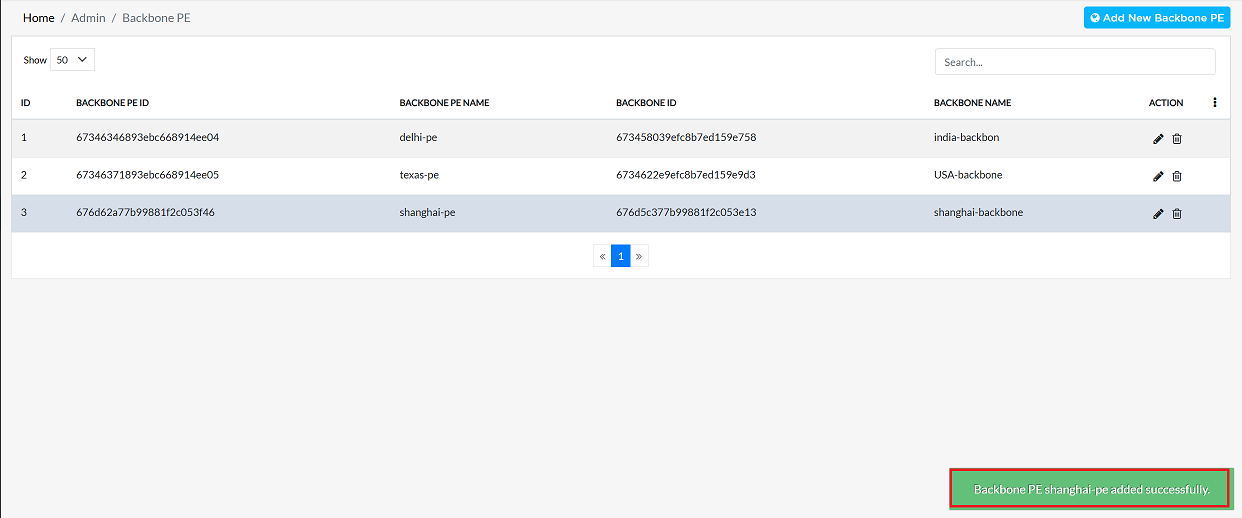

  • Upon successful saving, a confirmation message will appear Backbone PE shanghai-pe added successfully.

    image-3

Editing Backbone PE​

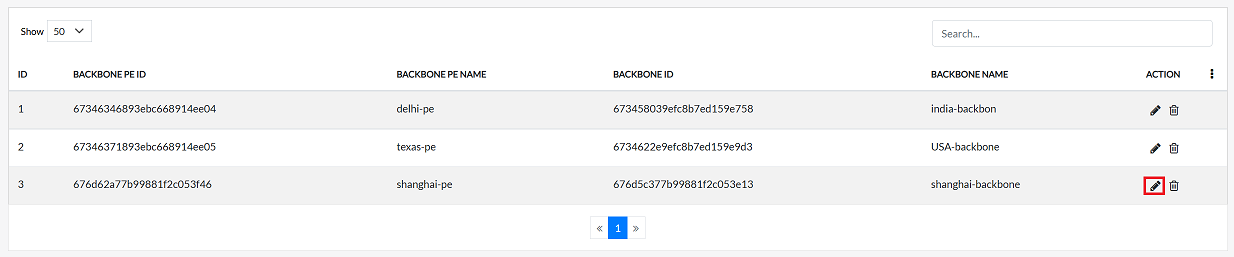

  • Locate the Backbone PE in the list and click the Edit button on the right.

    image-4

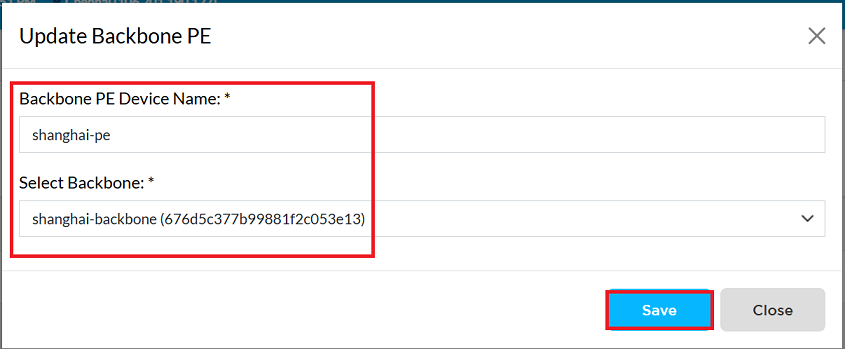

  • Update the following fields as needed.

    • Backbone PE Device Name: Modify the name of the Backbone PE device(i.e:- shanghai-pe)
    • Select Backbone: Update the associated Backbone if required(i.e, shanghai-backbone)
    • Click the Update button to save changes.

    image-5

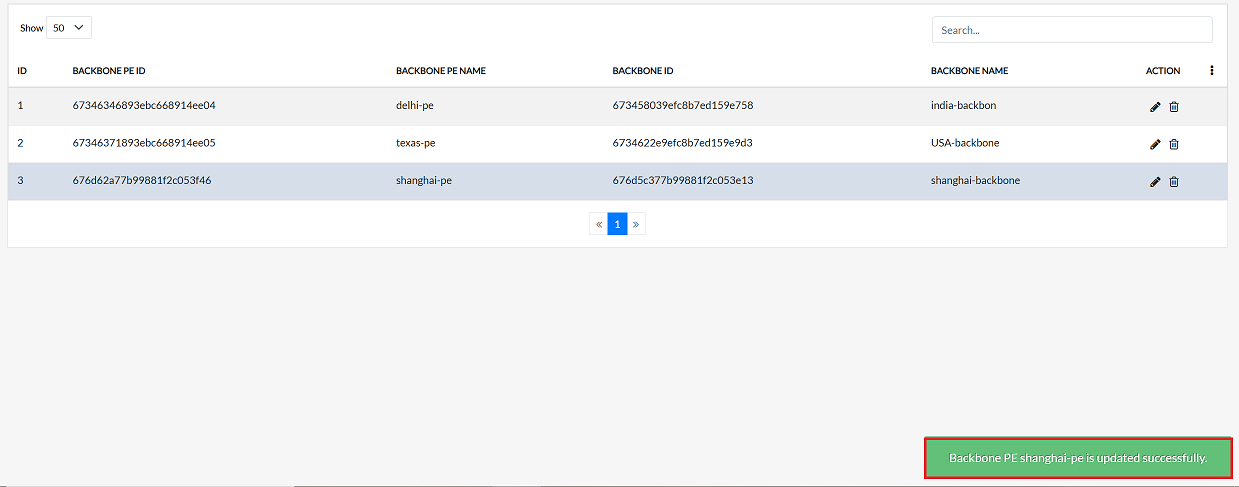

  • Upon successful update, a confirmation message will appear Backbone PE shanghai-pe is updated successfully.

    image-6

Deleting Backbone PE​

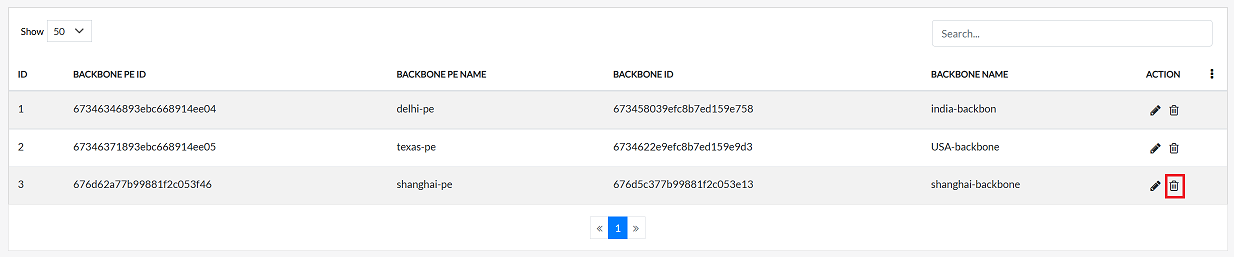

  • Locate the desired Backbone PE in the list and click the Delete button on the right.

    image-7

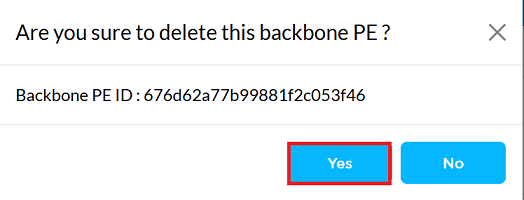

  • Confirm the deletion in the prompt by selecting Yes button.

    image-8

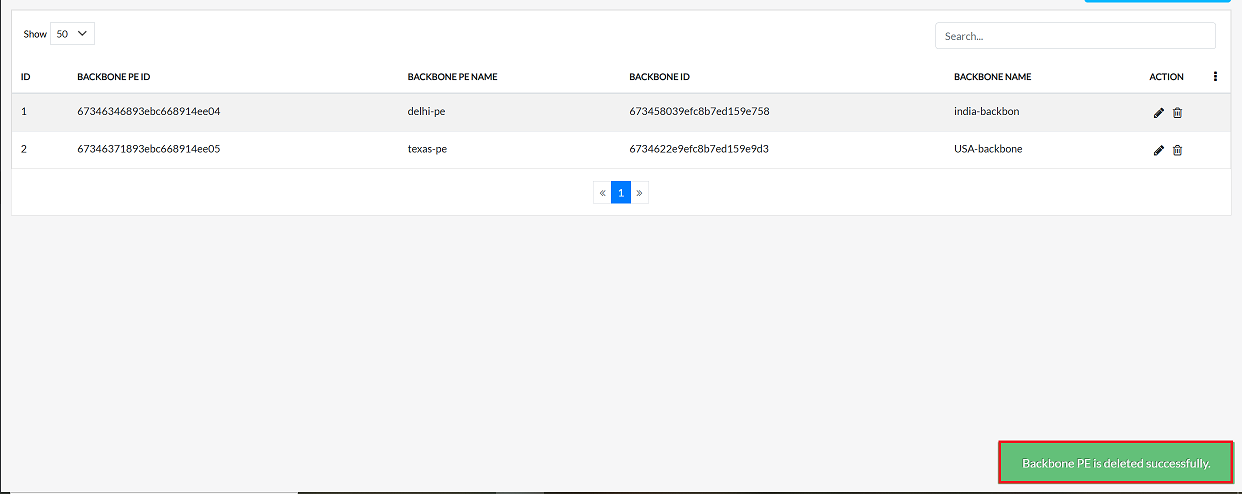

  • Upon successful deletion, a confirmation message will appear Backbone PE is deleted successfully.

    image-9

FAQS​

Q:1 What is a Backbone PE device?

Ans: Backbone PE is a specialized device that helps interconnect different parts of a computer network. It makes it easy to manage and grant network access to users.

Q:2 Can I modify the Backbone associated with a Backbone PE after creation?

Ans: Sure! You can change the Backbone PE and update the respective Backbone by going to the Backbone PE part and clicking the Edit button.

Q:3 What happens if I delete a Backbone PE?

Ans: When you delete a Backbone PE, it is gone for good and cannot be brought back. This means you'll need to move or replace anything attached to it to make sure everything still works.

Q:4 Is there a way to recover a deleted Backbone PE?

Ans: No, Backbone PE disappears when it is deleted. Creation of a new backbone PE will be necessary.
