Advance

This guide explains how to configure upload and download limits for the Ethernet interface on a CE device.

Traffic Policy​

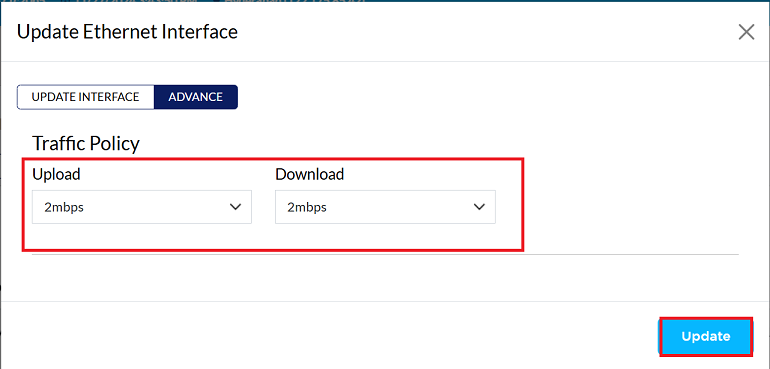

  • Navigate to the Login > CE Devices > [Select CE] > Intefaces > [Pick Ethernet Interface] > Edit > Advance.

  • You are in the Advance tab of ethernet interface, find the Traffic Policy section.

  • Set desired Traffic Policy settings to limit upload and download. (i.e. 2Mbps)

  • Click the Update button to save new configuration.

    image-1

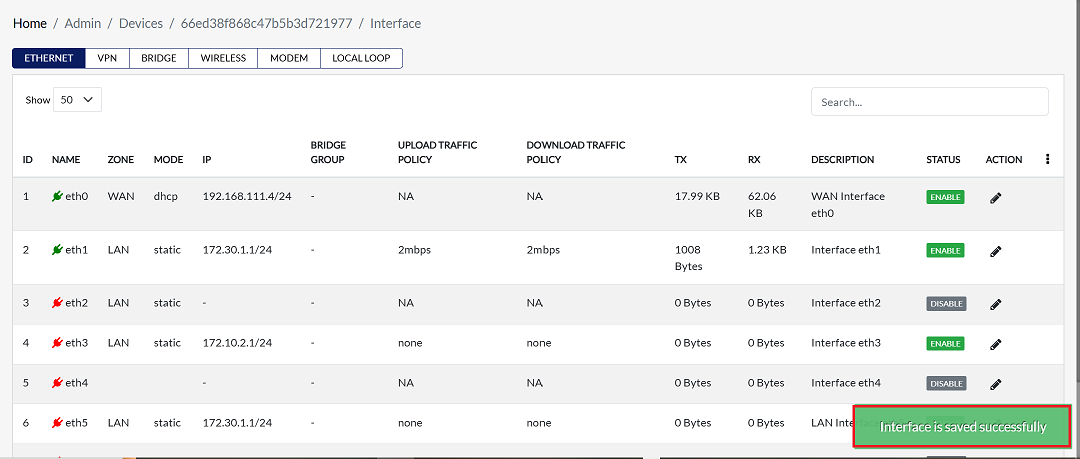

  • A confirmation message Interface is saved successfully will appear on the screen after successful configuration.

    image-2
