GCP

Creating a PE instance in Google Cloud involves choosing the right machine image, configuring the instance details, and ensuring its successful deployment. This guide provides a step-by-step process for creating a PE instance and verifying its configuration.

Creating PE Instance​

  • Open your web browser or google, navigate to the Google Cloud Console, and log in using your credentials.

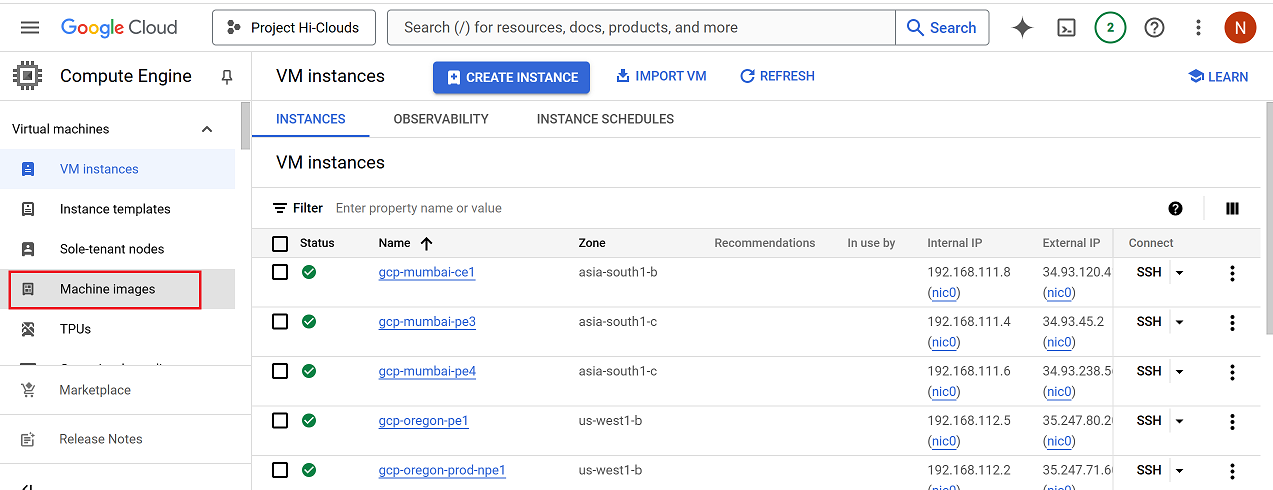

  • Go to Compute Engine > Machine Images.

    image-1

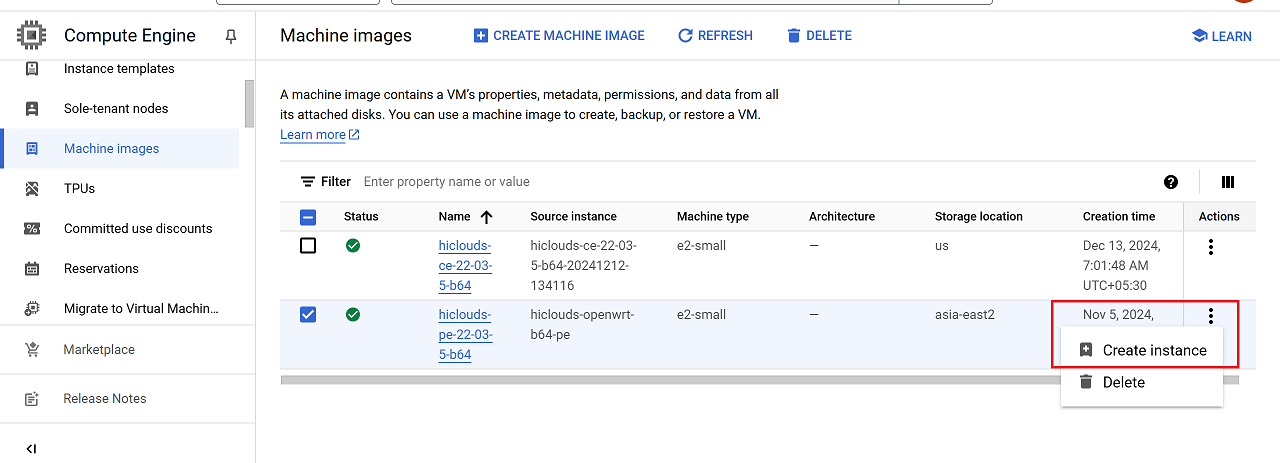

  • There property name and value will be seen.

  • Select the checkbox associated with the specific property.

  • Click on the three dots menu located on the right side of the selected property.

  • Select Create Instance from the dropdown menu.

    image-2

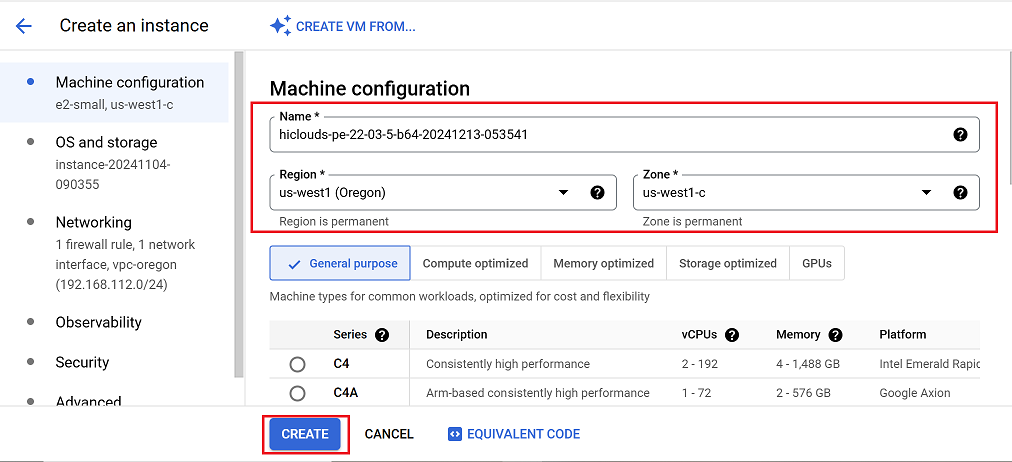

  • Fill in the following details in the configuration screen:

    • Name: The name is auto-filled by default. Modify it if required.
    • Region: Select the appropriate region (i.e., us-west1 (Oregon)).
    • Zone: Choose the desired zone (i.e., us-west1-c).

  • Once the configuration is complete, click the Create button.

columbus-region

If you select the region us-east5 (Columbus), a networking error will be displayed.

image-3

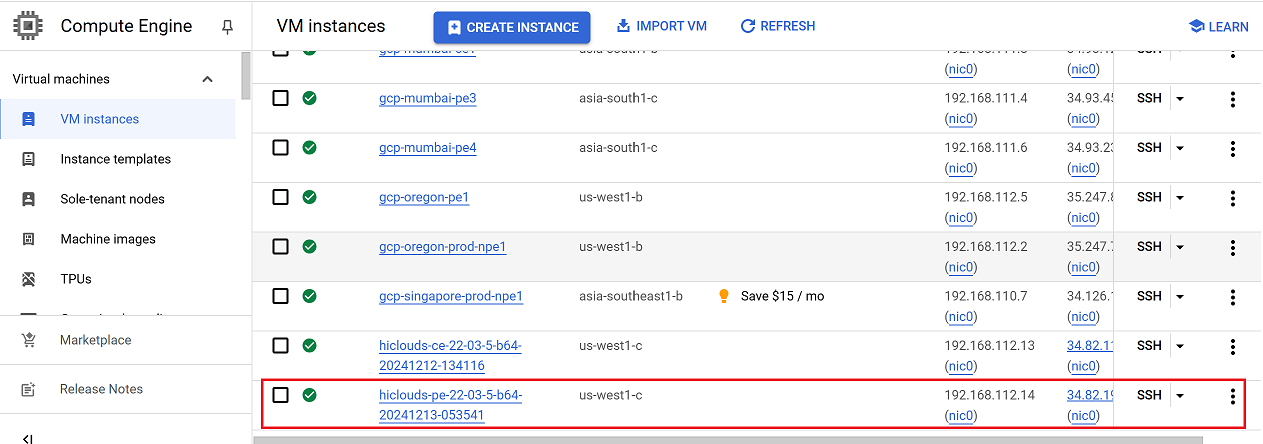

  • After successfully creating the instance, the page will automatically redirect to the VM Instances list.

  • Wait for 2–5 minutes or refresh the page to confirm the new instance appears in the list.

    image-4

Verify the PE Instance​

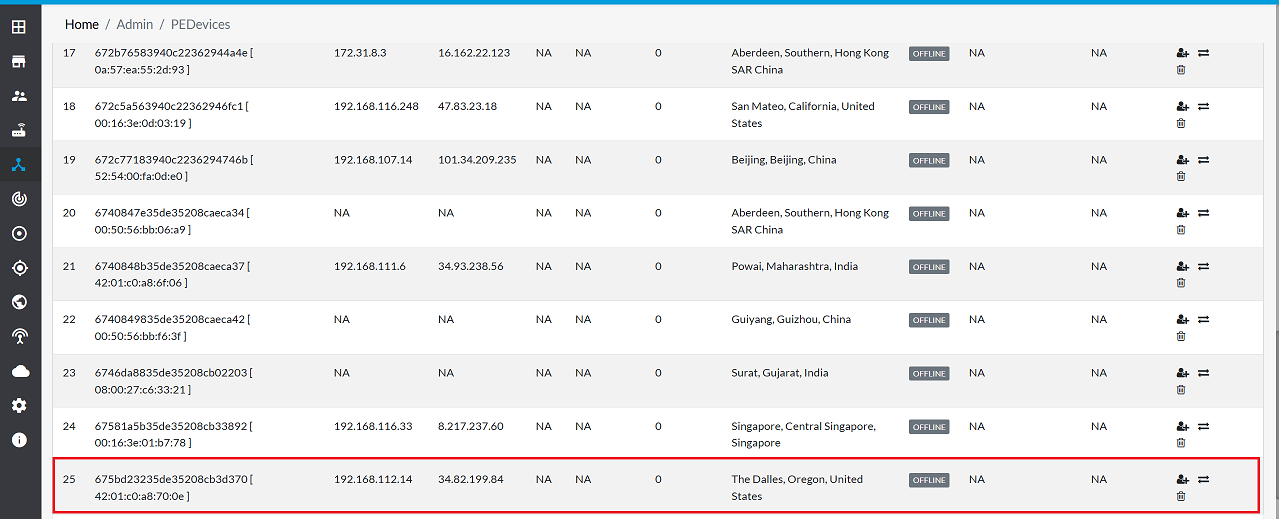

  • Once the PE is successfully created, proceed to the hiCLOUDS platform to verify its configuration.

  • Go to Login > PE Devices > ALL.

  • Make sure that the newly created PE instance appears in the list of devices.

    image-5

FAQs​

Q1: How can I resolve the networking error in us-east5 (Columbus)?

Ans: If the error occurs while creating a networking virtual device, this region might have specific restrictions or unavailability. Choose another region or contact Google Cloud support for assistance. If the error occurs while creating a Private Endpoint (PE), please confirm with your backbone engineer whether the VPC and vSwitch have already been created in the us-east5 region.

Q2: Can I modify the PE instance after creation?

Ans: Yes, you can modify certain configurations like disk size and network settings via the VM Instances page.
