This document provides a detailed, step-by-step guide for creating and configuring a PE instance on Tencent Cloud.

A Tencent Cloud PE instance is a virtual machine that offers scalable computing power. This guide will take you through the steps of creating, configuring, and verifying a PE instance to make sure it meets your infrastructure requirements. It covers selecting images, setting up network configurations, and checking the operational status of the instance.

Creating PE Instance​

  • Open your web browser and navigate to the Tencent Cloud Console.

  • Log in using your credentials.

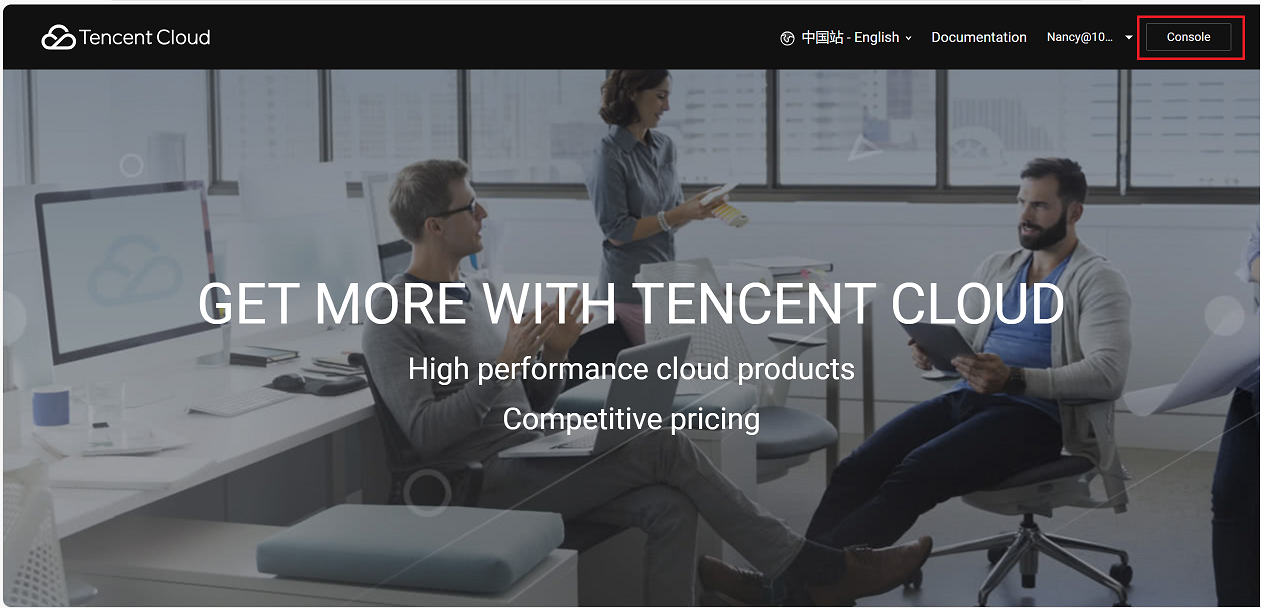

  • Click on the Console.

    image-1

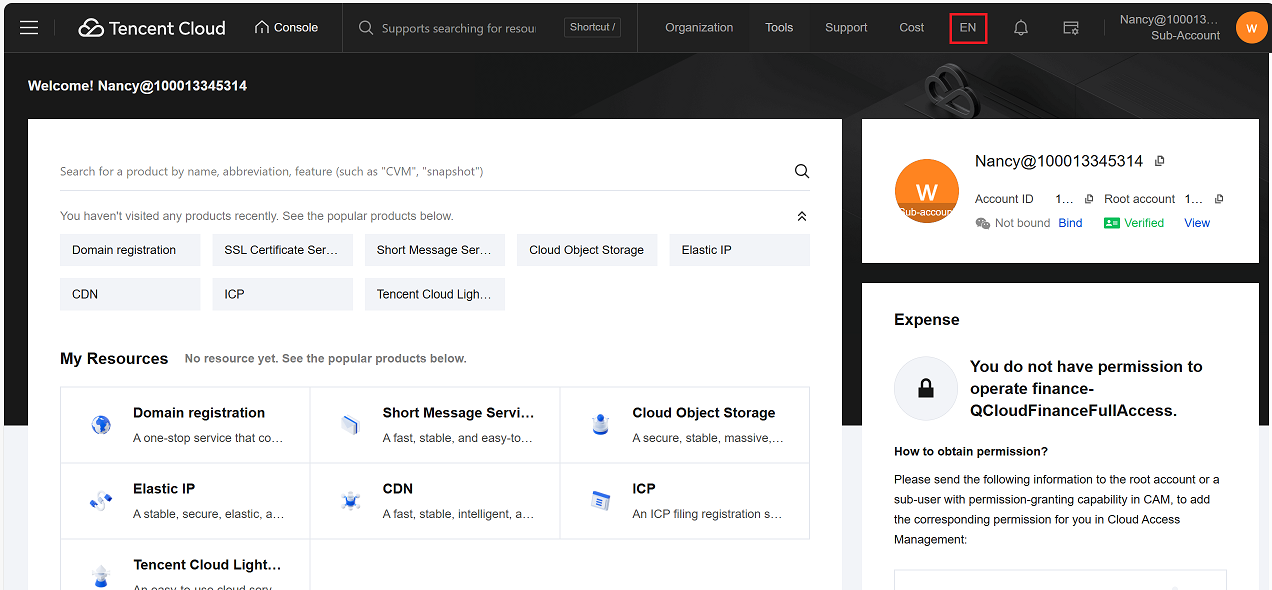

  • Update the language settings if required, as shown in the image above.

    image-2

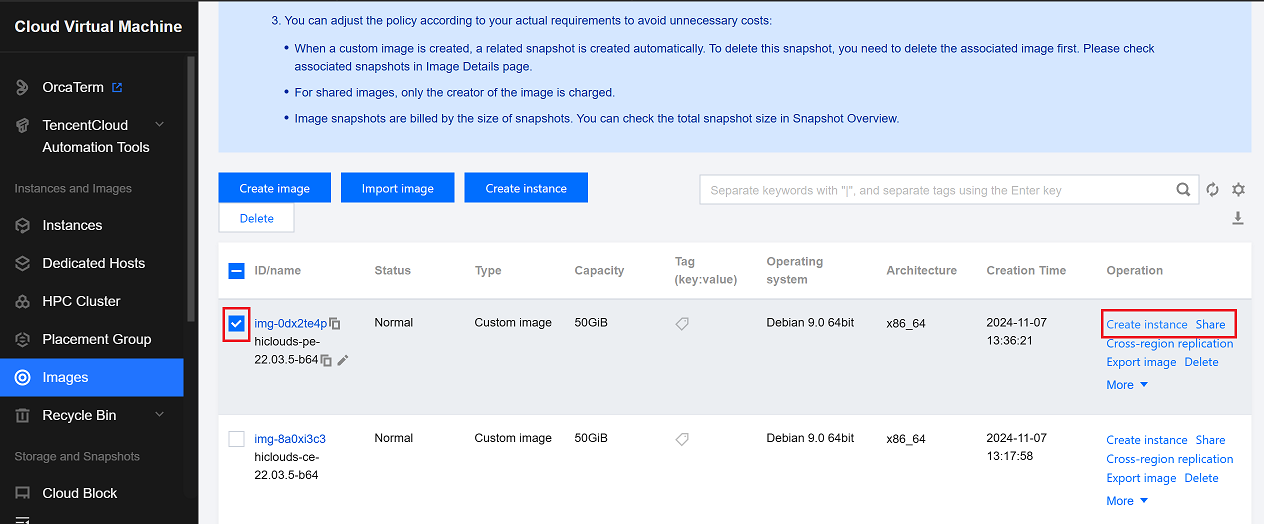

  • Go to Compute > Cloud Virtual Machine > Images > Custom Image.

  • Select the desired custom image by clicking its checkbox.

  • On the right-hand side, click Create Instance Share.

    image-3

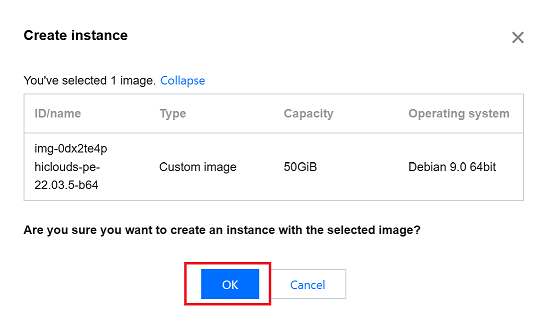

  • A confirmation message will appear.

  • Click OK to proceed with creating the instance.

    image-4

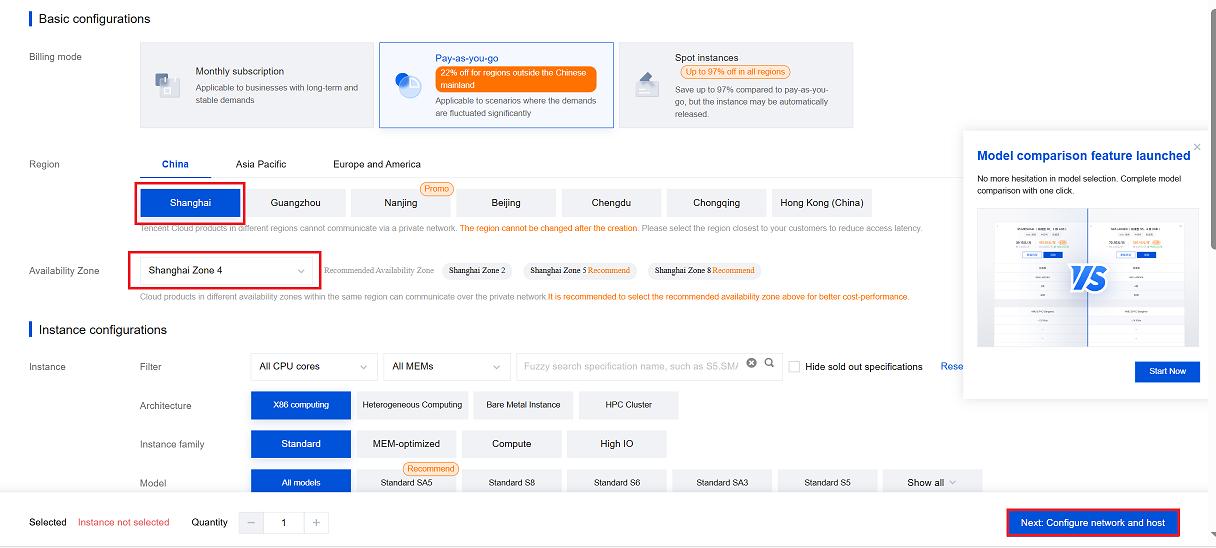

  • A new tab will open with the configuration page. Complete the following fields:

    • Billing Method: Choose Pay-as-you-go based on your preference.
    • Region: Select the desired region (i.e., Shanghai).
    • Availability Zone: Choose the availability zone (i.e., Shanghai Zone 4).
    • Click on the Next Step: Setting up the network and host.

    image-5

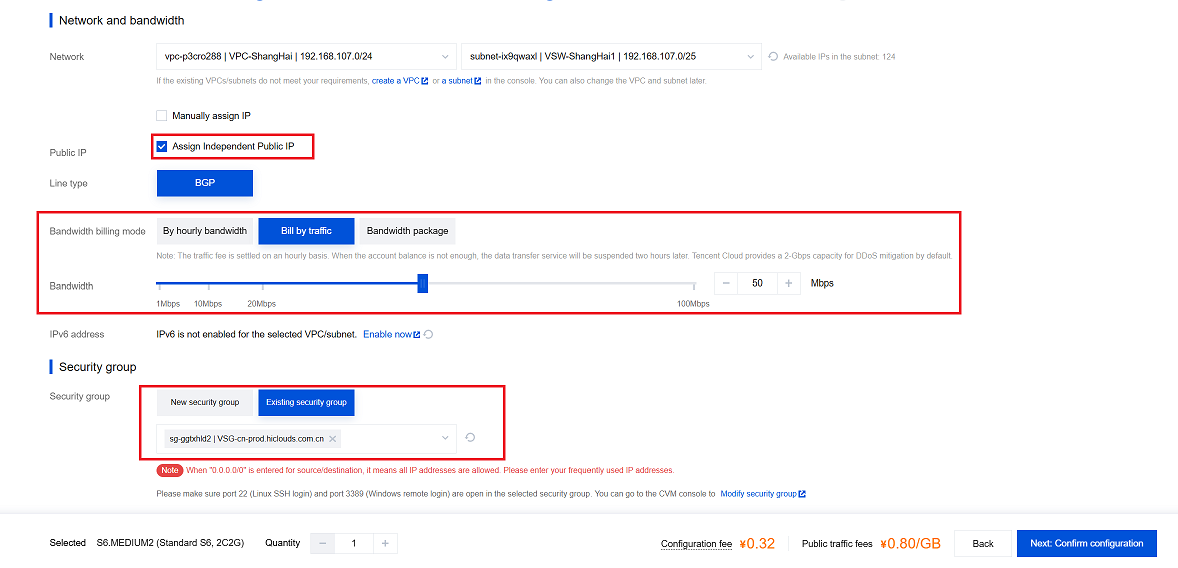

    • Public IP: Enable the checkbox to assign a public IP.
    • Bandwidth Billing Mode: Select the mode (i.e., Bill by Traffic).
    • Bandwidth: Set the desired bandwidth (i.e., 50 Mbps).
    • Security Group: Navigate to and select the appropriate security group.

    image-6

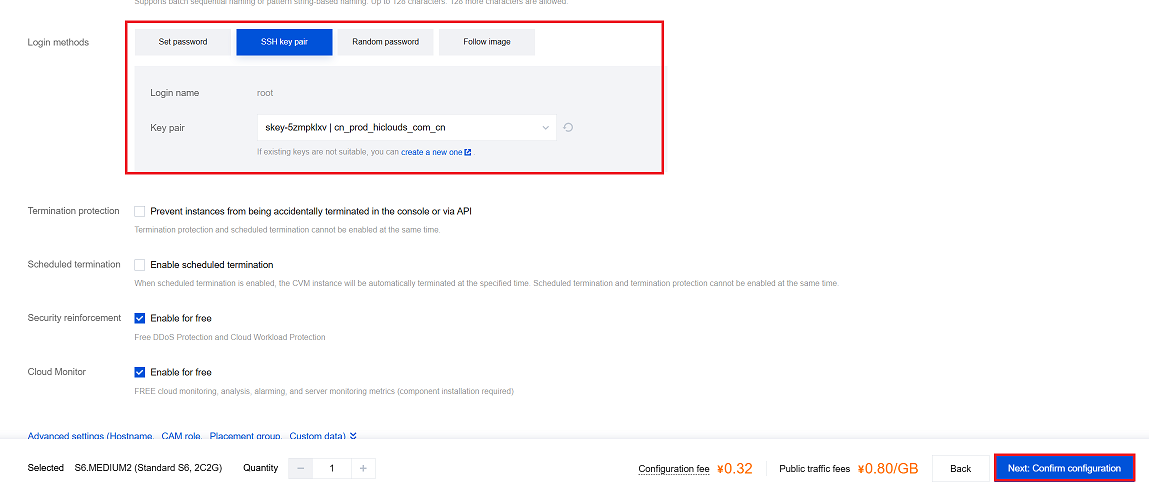

    • Key Pair: Choose the key pair for secure access.
    • Click on the Next: Confirm Configuration.

    image-7

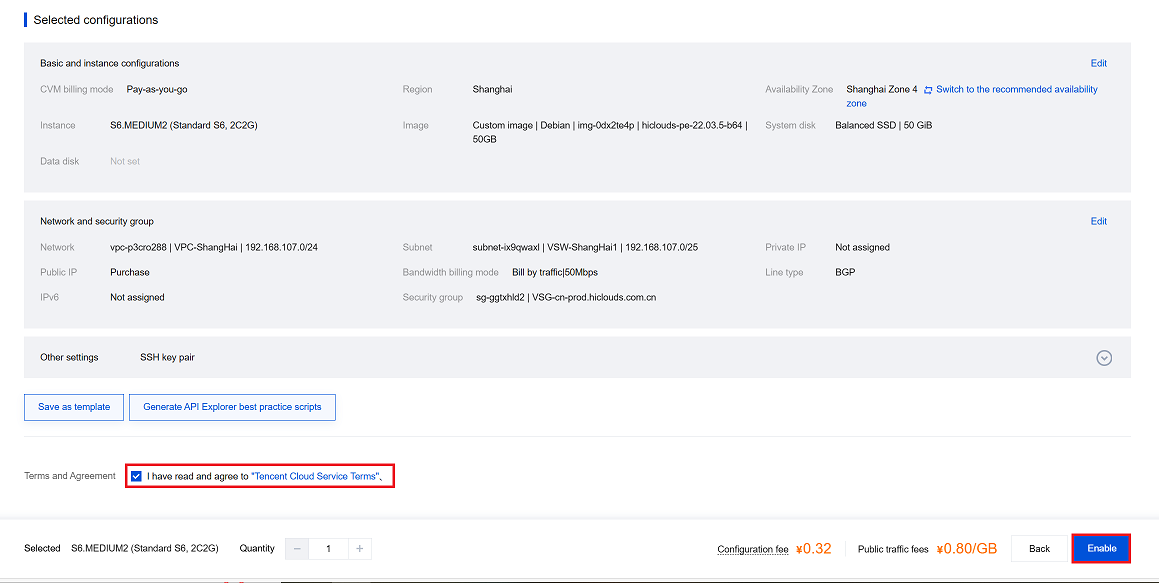

    • Review the configuration details.
    • Agree to the terms and conditions by selecting the checkbox.

  • Click on the Enable button.

    image-8

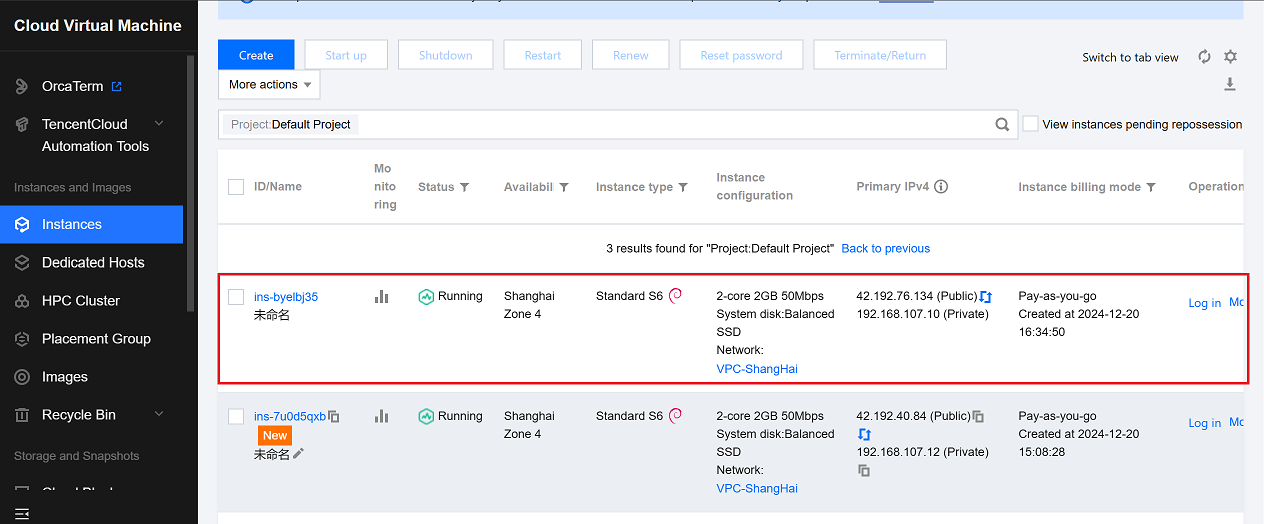

  • Once enabled, you will be redirected to the Instances Page, where you can manage and monitor your new PE instance.

    image-9

Verify the PE Instance​

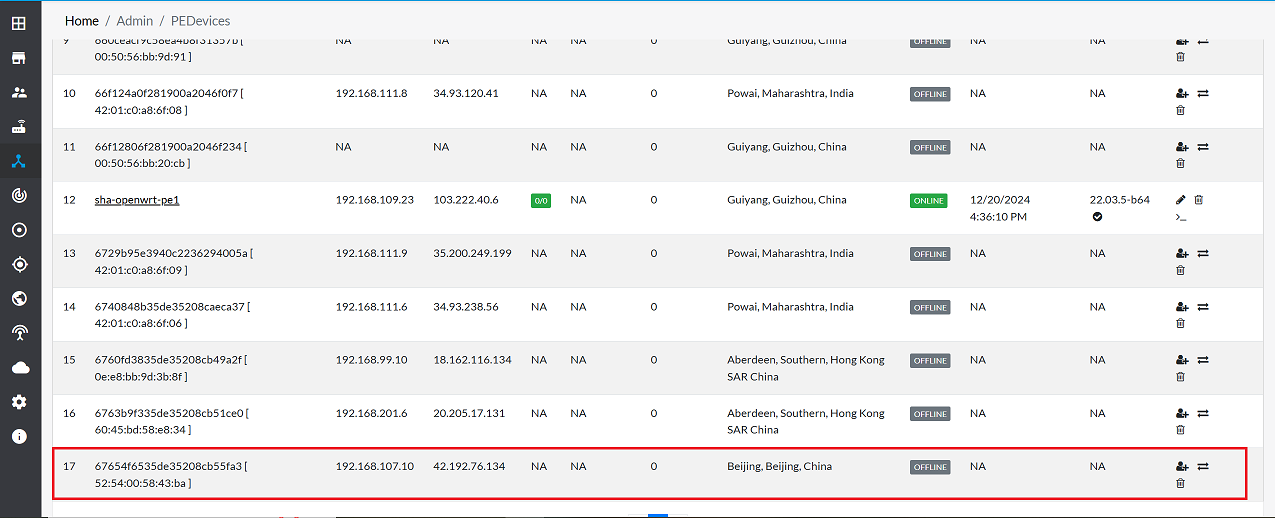

  • Once the PE is successfully created, proceed to the hiCLOUDS platform to verify its configuration.

  • Go to Login > PE Devices > ALL.

  • Make sure that the newly created PE instance appears in the list of devices.

    image-10

FAQs​

Q:1 What is a security group, and why is it important?

Ans: A security group acts as a virtual firewall to control inbound and outbound traffic for your instance.

Q:2 Can I use custom images to create a PE instance?

Ans: Yes, custom images can be used to preconfigure instances with specific applications and settings.
