DNS

DNS (Domain Name System) is a main networking service that converts domain names into IP addresses, facilitating intercommunication among devices. Below are steps for configuring DNS settings on your CE device.

DNS Settings​

  • Go to Login > CE Device > [Select CE] > System.

  • To configure DNS on the device, follow these steps:

    • Toggle the DNS IP Enabled option to enable the DNS configuration section.

  • Fill in the Required Details:
    Enter the following information:

    • Listen Address: Specify the IP address to which the DNS server will listen.
    • Listen On: Define the interface where the DNS server will operate.
    • Nameserver: Provide the IP address of the upstream DNS server.
    • Cache Size: Set the size for DNS query storage in your cache.
    • Domain Name: Enter the domain name to be served by the DNS server.
    • Server IP: Enter the IP address of the DNS server.
    • Allow From: Specify the IP addresses that are allowed to query the DNS server.
    • Select Netmask: Select the appropriate netmask for the network configuration.

  • Click the Save Config button to apply the changes.

    image-1

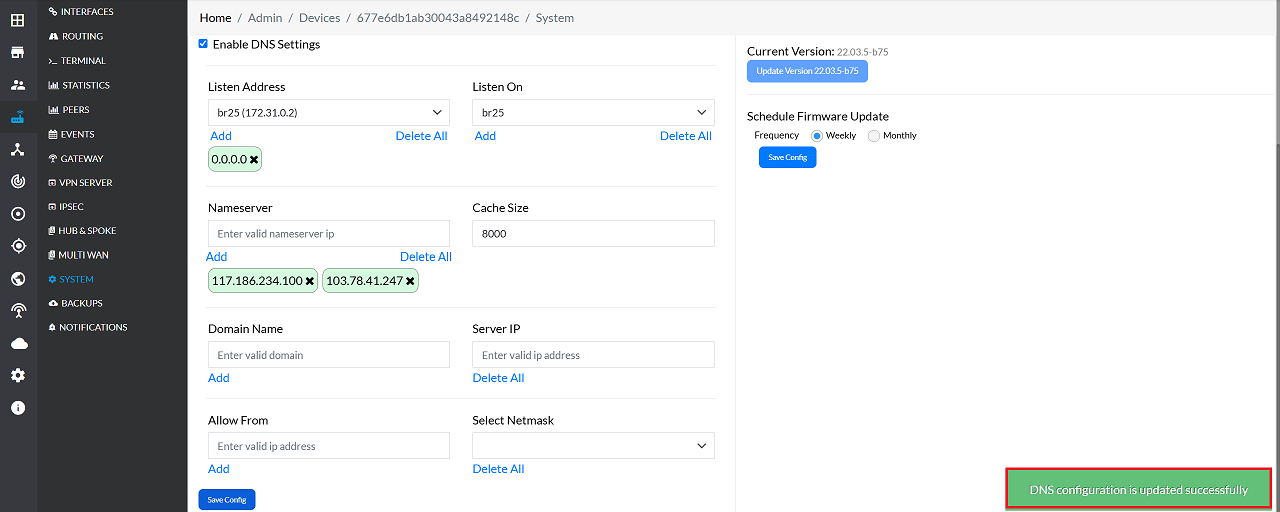

  • After saving, a message will appear on the screen stating DNS configuration is updated successfully.

    image-2
